Woven bristle coir soil erosion control blanket.
BioD-Mat® 40 blanket is a completely biodegradable soil erosion control blanket and does not contain any synthetic materials to harm wildlife.

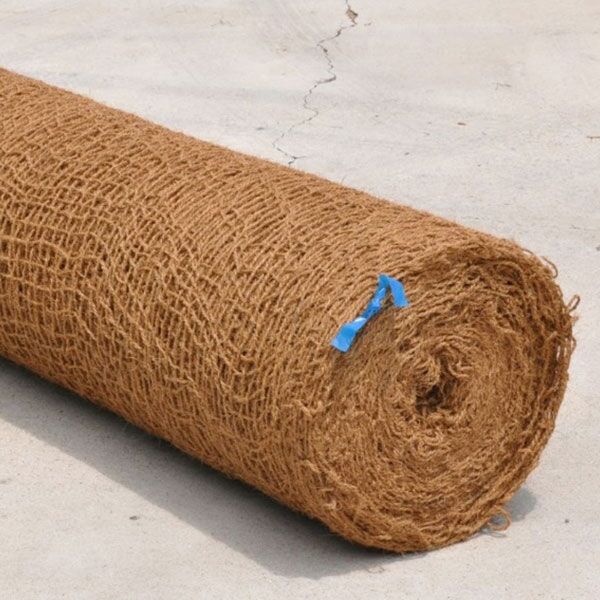

BioD-Mat® 40 is a natural and biodegradable woven coir soil erosion control blanket. RoLanka ’s BioD-Mat® 40 soil erosion control blanket is woven from machine-spun bristle coir twines. This semi-permanent 100% biodegradable, strong and durable bristle coir woven erosion control blanket provides higher resistance upon installation while supporting growth and development of vegetation. BioD-Mat® 40 woven soil erosion control blanket has field functional longevity of 4-6 years. The strength and durability of this blanket allows designers and specifiers to go beyond the design limits of other types of organic soil erosion control blankets. This strong, durable, and biodegradable soil erosion control blanket plays an important role in soil bioengineering and wetland restoration applications. The open weave in the BioD-Mat® 40 soil erosion control blanket allows reseeding before and after installation. The 0.75 in. x 0.75 in. opening in this soil erosion control blanket allows planting plugs through the blanket without cutting the erosion control blanket. The 9.84 ft (3 m) and 13.1 ft. (4 m) wide blankets have one seam in the mat.
Recommendation for choosing a woven coir blanket.
When selecting and specifying woven coir erosion control blankets, designers should not only consider the unit weight, but also the wet tensile strengths, coir type, open area as well as machine direction and cross direction twine counts.
Resources
Print specification of BioD-Mat® 40
Order Online
BioD-Mat 40 blanket is available in 4 different roll sizes:
- 3.28 ft. x 83 ft. = 30 SY/roll (1m x 25m =25 m2/roll)
- 6.56 ft. x 166ft.= 120 SY/roll (2m x 50m =100 m2/roll)
- 9.84 ft. x 166 ft. = 180 SY/roll (3m x 50m =150 m2/roll)
- 13.1 ft. x 83 ft. = 120 SY/roll (4m x 25m =100 m2/roll)
Price:
$95.00 – $1,600.00
Specifications
| Property | Test Method | BioD-Mat® 40 |
| Weight | ASTM D 3776 | 13.6 oz/SY (460g/sq.m) |
| Dry tensile strength | ||
| Machine direction | ASTM D 4595 | 780 lbs/ft (11.4 kN/m) |
| Cross direction | ASTM D 4595 | 744 lbs/ft (10.9 kN/m) |
| Wet tensile strength | ||
| Machine direction | ASTM D 4595 | 672 lbs/ft (9.8 kN/m) |
| Cross direction | ASTM D 4595 | 648 lbs/ft (9.5 kN/m) |
| Elongation at failure Wet | ||
| Machine direction | ASTM D 4595 | 30% |
| Cross direction | ASTM D 4595 | 28% |
| Open area | Calculated | 65% |
| Thickness | ASTM D 1777 | 0.35 in (9 mm) |
| Minimum Twine Count | ||
| MD x CD (per foot) | 15 x 14 | |
| Recommended slope | 2:1 | |
| Recommended flow | 8 fps (2.4 m/s) | |
| Recommended shear stress | 3 lbs/sq. ft (145N/sq. m) | |
Applications
- Erosion control in low flow channels with mulch underneath the erosion control blanket.
- Erosion control on slopes with 2:1 gradient.
- Erosion control on streambanks and shorelines.
- Erosion control in wetland areas.
- Erosion control in all types of soil bioengineering applications.
Advantages
- A 100% biodegradable soil erosion control blanket.
- Economical soil erosion control blanket compared to synthetic mats.
- Open weave in this soil erosion control blanket allows re-seeding after installation, when necessary.
- Open weave in this soil erosion control blanket allows planting through the mat without cutting it.
- Easy to install and to walk on this soil erosion control blanket.
- Wildlife will not feed on this soil erosion control blanket.
- This soil erosion control blanket has higher resistance to UV light compared to synthetic mats.
- Coir twines in soil erosion control blanket move independently and create no threat to wildlife movement.
- This soil erosion control blanket supports establishing vegetation better than synthetic mats.
- This soil erosion control blanket is woven from machine twisted bristle coir fiber twine, and it is strong and durable.
- This soil erosion control blanket holds moisture in the mat and supports seed germination and seedling growth.
- Higher tensile strength in this soil erosion control blanket provides initial support needed in soil bioengineering applications, efficient and environmentally friendly soil erosion control application techniques.
- This soil erosion control blanket lasts 4 – 6 years and provides aesthetically pleasing applications.
- BioD-Mat® 40 woven soil erosion control blanket is made from freshwater cured bristle coir fiber, and it is dark brown in color.
