BioD-Mat 90

Woven bristle coir soil erosion control blanket.

BioD-Mat® 90 blanket is a completely biodegradable soil erosion control blanket and does not contain any synthetic materials to harm wildlife.

Strongest natural fiber blanket available in the market for severe erosion situations.

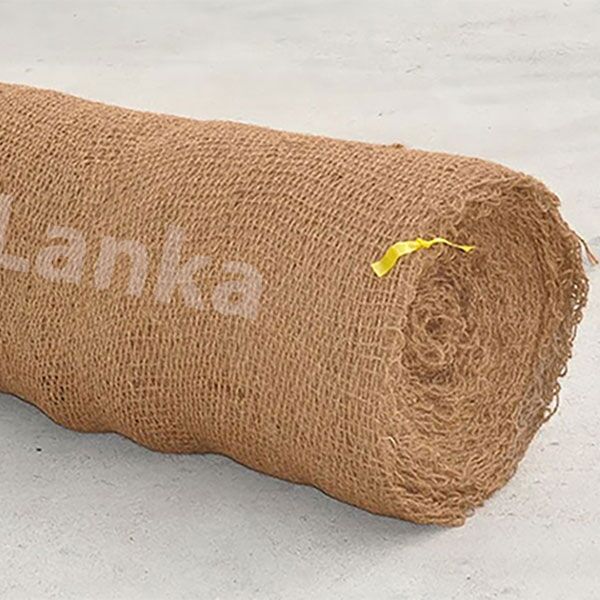

BioD-Mat® 90 erosion control blanket is woven from machine-spun bristle coir twines. Its unit weight is 980 g/sq. m. It is the strongest natural fiber blanket in the market. This semi-permanent 100% biodegradable, strong and durable bristle coir woven blanket provides higher resistance upon installation while supporting growth and development of vegetation. BioD-Mat® 90 blanket has field functional longevity of 4-6 years. This blanket allows designers and specifiers to go beyond the design limits of other types of organic erosion control blankets for tough erosion problems. This strong, durable, and biodegradable blanket plays an important role in soil bioengineering applications, steep slope restorations and high velocity flow channels. The open weave in the BioD-Mat® 90 blanket allows reseeding before and after installation, when necessary. Also, the 0.3 in x 0.5 in opening in the blanket allows planting plugs through the blanket without cutting the blanket. The independently moving coir twines in the blanket allow easy wildlife movement through the mat, thus it is completely safe for wildlife.  The 9.8 ft. and 13 ft. wide blankets have one seam in the mat.

Recommendation for choosing a woven coir blanket.

When selecting and specifying woven coir mats, designers should not only consider the unit weight, but also the wet tensile strengths, coir type, open area as well as machine direction and cross direction twine counts.

Resources

Order Online

Price:

$200.00$1,700.00

Specifications

Property Test Method BioD-Mat® 90
Weight ASTM D 3776 29 oz/SY (980 g/m2)
Dry tensile strength
Machine direction ASTM D 4595 2024 lbs./ft (29.6 kN/m)
Cross direction ASTM D 4595 1160 lbs./ft (17.0 kN/m)
Wet tensile strength
Machine direction ASTM D 4595 1776 lbs./ft (26.0 kN/m)
Cross direction ASTM D 4595 936 lbs./ft (13.7 kN/m)
Elongation at failure Wet
Machine direction ASTM D 4595 52%
Cross direction ASTM D 4595 24%
Open area Calculated 38%
Thickness ASTM D 1777 0.35 in (9 mm)
Minimum Twine Count
MD x CD (per foot) 39 x 18
Recommended slope > 1:1
Recommended flow 16 fps (4.9 m/s)
Recommended shear stress 5 lbs./sq. ft. (240 N/sq. m)
Fiber type in twine Brown bristle coir fiber

Applications

  • Wetland restoration
  • Streambank restoration
  • Slope stabilizations in slopes > 1:1
  • High flow channels / ditches
  • Variety of soil bioengineering applications

Advantages

  • 100% biodegradable.
  • Economical compared to synthetic erosion control blankets.
  • Open weave allows re-seeding, when necessary.
  • Open weave allows planting through the mat without cutting the mat.
  • Easy to install and to walk on the mat.
  • Wildlife will not feed on the mats.
  • Higher resistance to UV light compared to synthetic mats.
  • Coir twines move independently, creating no threat to wildlife movement.
  • Support establishing vegetation better than synthetic mats.
  • Woven from machine twisted bristle coir fiber twine; strong and durable.
  • Hold moisture for seed germination and seedling growth.
  • Higher tensile strength and provide initial support in bioengineering applications.
  • Last 4 – 6 years and provide aesthetically pleasing applications.
  • Made from freshwater cured bristle coir and dark brown in color.
Successful applications of BioD-Mat 90 woven bristle coir erosion control blanket.
